Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived. Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.
  • Large 2-person fold down handles
  • Built-in, spring loaded pull handle
  • Stainless steel caster wheels included
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design - strong, light weight
  • 3 level Pick N Pluck™ with convoluted lid foam
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • O-ring seal
  • Lifetime Guarantee of Excellence

Details

Military-Grade Protection

Our Protector cases have been designed to meet rigorous US/NATO mil-spec certifications, including an IP67 rating.

Double Throw Latches

Ultra-reliable double-throw latches hold tight under extraordinary drops and impact.

Waterproof, Dustproof, Crushproof

Built to protect your gear against the harshest conditions

Accessories

pelican custom case foam yellow case
Design Your Own Foam
0341 Protector

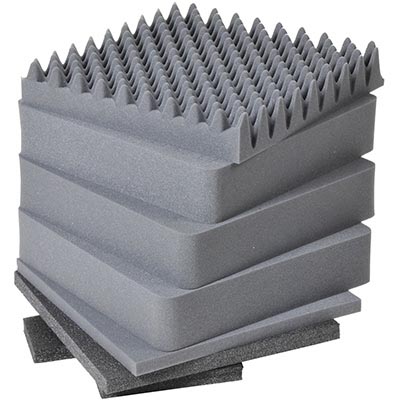

0341 7 pc. Replacement Foam Set
Case
0345 Protector

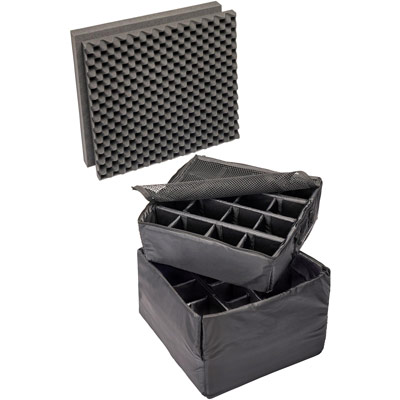

0345 Padded Divider Set
Case
1507 Protector
1507 Quick Mounts - set of 4
Case
0341 Protector
0341 7 pc. Replacement Foam Set
Case
0345 Protector
0345 Padded Divider Set
Case
1507 Protector
1507 Quick Mounts - set of 4
Case
0343 Protector
0343 Replacement O-ring
Case
0357 Protector
0357 Cube Case Mobility Package
Case
1500CI Protector
1500CI Corrosion Intercept Kit
Case
0357 Protector
0357 Cube Case Mobility Package
Case

Measurements

Exterior

(LxWxD)


Inches: 20.50 x 20.50 x 19.25 in


Centimeters: 52.07 x 52.07 x 48.9 cm


Padlock Hole Diameter: 0.31"



Weight

With Foam: 29.76 lbs (13.5 kg)


Without Foam: 24.00 lbs (10.89 kg)


Interior

(LxWxD)


Inches: 18.00 x 18.00 x 18.00 in


Centimeters: 45.72 x 45.72 x 45.72 cm



Capacity

Volume: 140.08QT (132.57 liters)


Int Volume: 3.38 ft³ (0.1 m³)


Lid Depth: 4.5" (11.4cm)


Bottom Depth: 13.5" (34.3cm)


Total Depth: 19.25" (48.9cm)


Buoyancy: 220.46


Materials

Foam Material: 1.3 lb Polyurethane


Body Material: Polypropylene


Latch Material: ABS


O-Ring Material: Polymer


Pins Material: Stainless Steel


Purge Body Material: ABS



Temperatures

Min Temp: -40°F


Max Temp: 210°F


Warranty

Guarantee of Excellence
