Overview

Pelican™ Air
We’ve stretched out our line of Pelican™ Air cases, so now you can protect your long equipment inside the world’s toughest and lightest case. 44” long with built in wheels and 40% lighter than other polymer cases, the Pelican™ Air 1745 case keeps you rolling and provides the perfect leg room to protect survey equipment, firearms, camera tripods and other lengthy equipment. With 8” of internal space and available with two layers of custom foam* (pelicanfoam.com) or standard issue Pick N Pluck™ foam, the Pelican™ Air 1745 is our deepest long case that provides the option to stack multiple items on both bottom and top layers or just use the top layer to nestle long individual equipment. The Pelican™ Air 1745 case is also the first Pelican™ Air case to feature Press and Pull™ latches, tested for extreme pressure and impact situations. These latches keep the lid shut through rough handling but are easy to open on arrival. Pelican™ Air 1745 case: The long haul just got easier.
  • Waterproof, crushproof, dustproof
  • Super-light proprietary HPX²™ Polymer - up to 40% lighter
  • Press and Pull™ Latches
  • Quiet rolling stainless-steel bearing wheels
  • User-customizable Pick N Pluck™ foam
  • Fold down over-molded handle
  • Waterproof O-ring seal
  • Business card holder
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • Stainless steel padlock protectors
  • IP67 & MIL-SPEC certified

Details

40% Lighter than Other Polymer Cases

Engineered for easy transport without compromising strength or protection.

Press & Pull™ Latches

Secure, easy-open latches that stay shut under pressure and open only when you need them.

Waterproof, Dustproof, Crushproof

Built to protect your gear against the harshest conditions

Measurements

Exterior

(LxWxD)


Inches: 46.69 x 19.36 x 8.73 in


Centimeters: 118.59 x 49.17 x 22.17 cm


Padlock Hole Diameter: 0.31"



Weight

With Foam: 21.06 lbs (9.55 kg)


Without Foam: 17.26 lbs (7.83 kg)


Interior

(LxWxD)


Inches: 44.01 x 16.77 x 7.94 in


Centimeters: 111.79 x 42.6 x 20.17 cm



Capacity

Volume: 136.64QT (129.31 liters)


Int Volume: 3.39 ft³ (0.1 m³)


Lid Depth: 2.51" (6.4cm)


Bottom Depth: 5.43" (13.8cm)


Total Depth: 8.73" (22.2cm)


Materials

Body Material: Proprietary Polypropylene Blend


Latch Material: ABS


O-Ring Material: EPDM


Purge Body Material: ABS



Temperatures

Min Temp: -60°F


Max Temp: 160°F


Warranty

Guarantee of Excellence

Learn More
Contact Us

Need Additional Support?

Contact Us

You May Also Like

r20bc Air
r20bc Air
Case
1700 Air
1700 Air
Case
0350 Air
0350 Air
Case
1560loc Air
1560loc Air
Case
1620m Air
1620m Air
Case
im3200 Air
im3200 Air
Case
m50 Air
m50 Air
Case
m50mu Air
m50mu Air
Case
1490cc1 Air
1490cc1 Air
Case
v800 Air
v800 Air
Case
0340 Air
0340 Air
Case

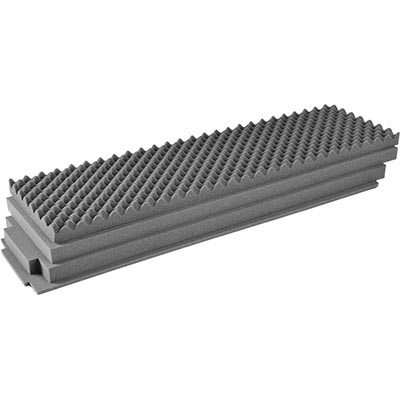

im3300 Air
