Overview

Pelican™ Protector
The original case introduced over 45 years ago has since evolved into the global standard for equipment protection. The Protector Case series is designed to survive and trusted to travel to the harshest environments on earth. The Pelican 1650 Protector Case provides military-grade protection for a wide variety of gear, from camera equipment to camping kits. It is available with foam, without foam, padded dividers, or TrekPak dividers.
  • 4 strong polyurethane wheels with stainless steel bearings
  • 2 level Pick N Pluck™ with convoluted lid foam
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design - strong, light weight
  • Retractable extension trolley handle
  • Easy open double-throw latches
  • Fold down handles
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • O-ring seal
  • Personalized nameplate service available

Details

Military-Grade Protection

Our Protector cases have been designed to meet rigorous US/NATO mil-spec certifications, including an IP67 rating.

Double Throw Latches

Ultra-reliable double-throw latches hold tight under extraordinary drops and impact.

Waterproof, Dustproof, Crushproof

Built to protect your gear against the harshest conditions

Accessories

pelican custom case foam yellow case
Design Your Own Foam
1651 Protector
1651 Protector
Case

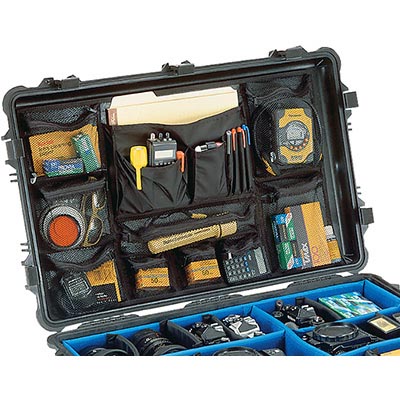

1659 Protector
1659 Protector
Case

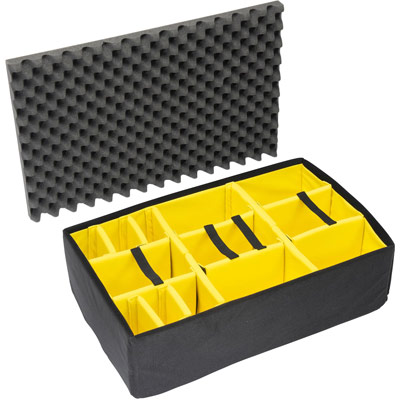

1655 Protector
1655 Protector
Case

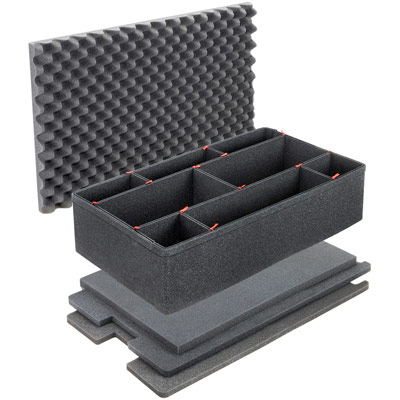

1650TPKIT Protector
1650TPKIT Protector
Case
1650TPDIV Protector
1650TPDIV Protector
Case
1507 Protector
1507 Protector
Case
1500D Protector
1500D Protector
Case
1506TSA Protector
1506TSA Protector
Case
1653 Protector
1653 Protector
Case
1652 Protector
1652 Protector
Case

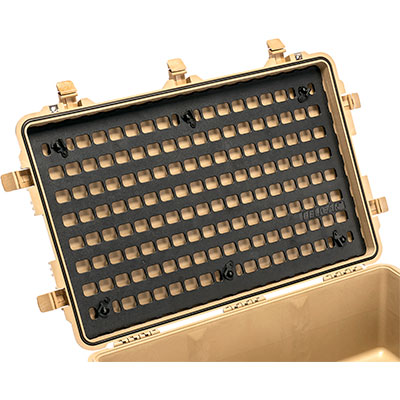

1650MP Protector
1650MP Protector
Case
1655 Protector
1655 Protector
Case
1507 Protector
1507 Protector
Case
1500D Protector
1500D Protector
Case
1506TSA Protector
1506TSA Protector
Case
1651 Protector
1651 Protector
Case
1659 Protector
1659 Protector
Case
1650TPKIT Protector
1650TPKIT Protector
Case
1650TPDIV Protector
1650TPDIV Protector
Case
1653 Protector
1653 Protector
Case
1500CI Protector
1500CI Protector
Case

Measurements

Exterior

(LxWxD)


Inches: 31.59 x 20.47 x 12.45 in


Centimeters: 80.24 x 51.99 x 31.62 cm


Padlock Hole Diameter: 0.31"



Weight

With Foam: 28.06 lbs (12.73 kg)


Without Foam: 24.03 lbs (10.9 kg)


Interior

(LxWxD)


Inches: 28.57 x 17.52 x 10.65 in


Centimeters: 72.57 x 44.5 x 27.05 cm



Capacity

Volume: 139.41QT (131.93 liters)


Int Volume: 3.08 ft³ (0.09 m³)


Lid Depth: 1.81" (4.6cm)


Bottom Depth: 8.84" (22.5cm)


Total Depth: 12.45" (31.6cm)


Buoyancy: 181.00


Materials

Foam Material: 1.3 lb Polyurethane


Body Material: Polypropylene


Latch Material: ABS


O-Ring Material: Polymer


Pins Material: Stainless Steel


Purge Body Material: ABS



Temperatures

Min Temp: -40°F


Max Temp: 210°F
