From stargazing on the top of Mount Everest to a photoshoot in the forests of the Amazon, the 1740 is your ideal method for protecting a telescope, jack hammer, rifles, chainsaw, tripods and lights, and other long gear. We developed the 1740 for easy one person transport and it's depth and length allow for infinite storage possibilities. Like all Pelican cases, standard features include a dustproof and watertight seal and it is backed by our legendary lifetime guarantee of excellence.
  • Four extra-deep base-to-lid locking cleats that ensure maximum stacking stability
  • 6-piece Pick n Pluck foam set
  • Open cell core, polymer wall construction
  • Watertight, crushproof, and dustproof
  • Wide-track polyurethane wheels with ball bearings and nylon hubs
  • Two Integrated Automatic Pressure Equalization Valves
  • Two rugged double-wide handles
  • Stainless steel hardware and padlock protectors
  • O-ring seal
  • Also available from Pelican: The 1770 Long Case
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence

Details

Military-Grade Protection

Our Protector cases have been designed to meet rigorous US/NATO mil-spec certifications, including an IP67 rating.

Double Throw Latches

Ultra-reliable double-throw latches hold tight under extraordinary drops and impact.

Waterproof, Dustproof, Crushproof

Built to protect your gear against the harshest conditions

Accessories

pelican custom case foam yellow case
Design Your Own Foam
1741 Protector

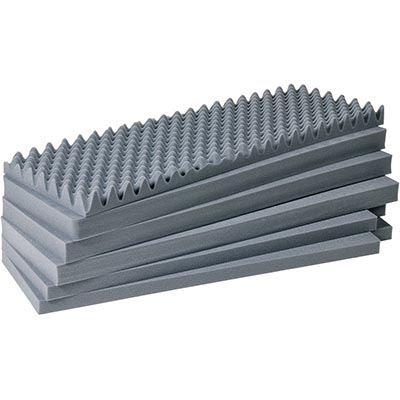

1741 6 pc. Replacement Foam Set
Case
1500D Protector
1500D Desiccant Silica Gel
Case
1506TSA Protector
1506TSA TSA Lock
Case
1500D Protector
1500D Desiccant Silica Gel
Case
1506TSA Protector
1506TSA TSA Lock
Case
1741 Protector
1741 6 pc. Replacement Foam Set
Case
1630DC Protector
1630DC Document Container Accessory
Case
1743 Protector
1743 Replacement O-ring
Case
1500CI Protector
1500CI Corrosion Intercept Kit
Case

Measurements

Exterior

(LxWxD)


Inches: 44.16 x 16.09 x 14.00 in


Centimeters: 112.17 x 40.87 x 35.56 cm


Padlock Hole Diameter: 0.31"



Weight

With Foam: 27.00 lbs (12.25 kg)


Without Foam: 22.00 lbs (9.98 kg)


Interior

(LxWxD)


Inches: 40.98 x 12.92 x 12.13 in


Centimeters: 104.09 x 32.82 x 30.81 cm



Capacity

Volume: 172.25QT (163.01 liters)


Int Volume: 3.72 ft³ (0.11 m³)


Lid Depth: 2.56" (6.5cm)


Bottom Depth: 9.57" (24.3cm)


Total Depth: 14" (35.6cm)


Buoyancy: 267.00


Materials

Body Material: Polypropylene


Latch Material: ABS


O-Ring Material: Polymer


Pins Material: Stainless Steel


Purge Body Material: ABS



Temperatures

Min Temp: -40°F


Max Temp: 210°F


Warranty

Guarantee of Excellence

Learn More
Contact Us

Need Additional Support?

Contact Us
